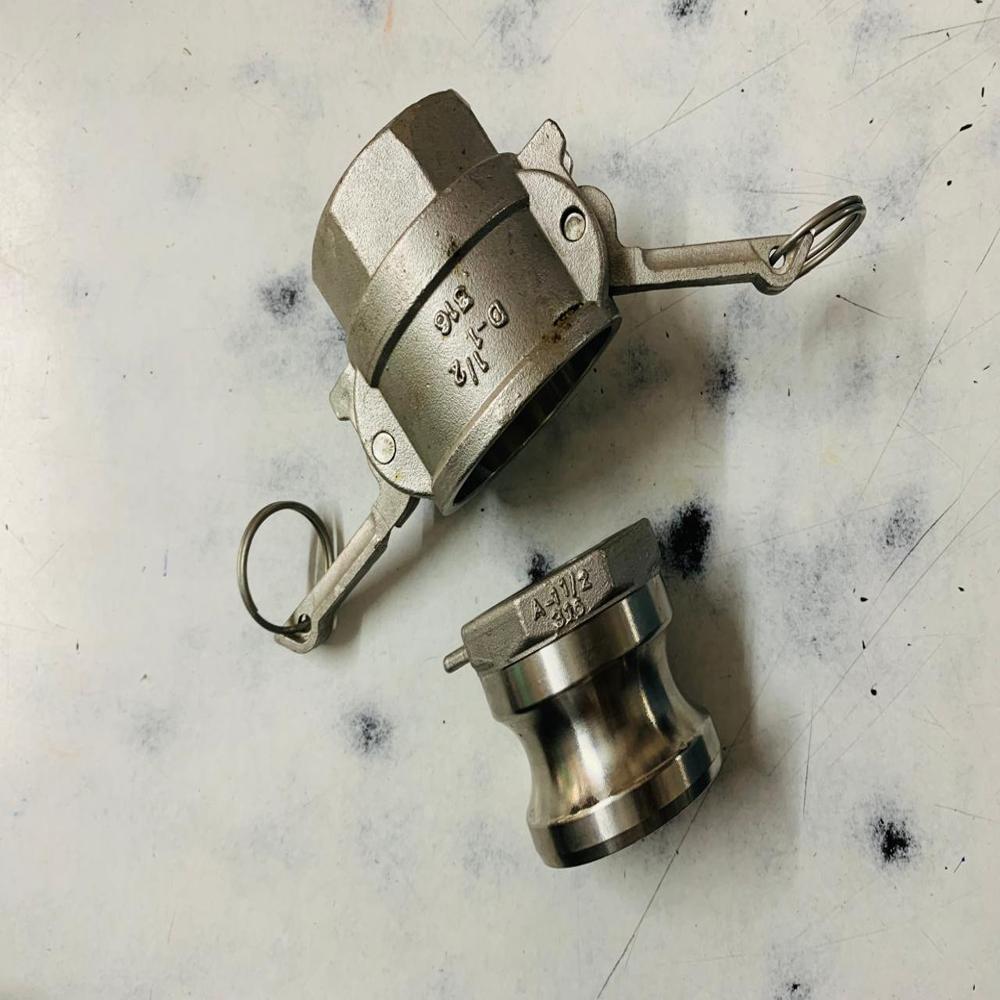

Industrial Camlock Coupling

Name: Industrial Camlock Coupling
Brand: SHIVANI TRADERS
Price: 400.0 INR
Availability: InStock

400.0 INR/Unit

Get a Price/Quote

Product Details:

Torque Hand-tight - no special tools required
Sealing NBR / EPDM / FKM Gasket available
Max. Speed Not applicable for static pipe coupling
Connection Quick Coupling Connection
Thread BSP / NPT (as per requirement)
Bore Full Bore
Head Code Hexagon
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Industrial Camlock Coupling Price And Quantity

Minimum Order Quantity 2 Unit
Price 400.0 INR/Unit

Industrial Camlock Coupling Product Specifications

Surface Treatment Polished / Shot blasted
Standard A-A-59326 / EN 14420-7
Head Code Hexagon
Bore Full Bore
Outer Diameter Customized as per specification
Connection Quick Coupling Connection
Thread BSP / NPT (as per requirement)
Sealing NBR / EPDM / FKM Gasket available
Torque Hand-tight - no special tools required
Material Stainless Steel (SS316/SS304 as marked on part)
Max. Speed Not applicable for static pipe coupling
Application Industrial fluid transfer, chemical processing, water and oil transport
Shape Camlock Coupling (Male and Female set)
Technique Investment Casting
Inner Diameter 1/2 inch (DN15)
Structure Lever Locking Arm with groove coupling

Color Metallic Silver
Weight Approx. 230g (for 1/2" size)
Locking Mechanism Stainless steel cam arms with safety pin
Temperature Range -20C to +220C (depending on gasket material)
End Connection Type Female Coupler x Male Adapter
Pressure Rating Up to 250 PSI (varies by size/material)
Corrosion Resistance Excellent, suitable for harsh environments
Wear Resistance High, suitable for repeated coupling/decoupling

Industrial Camlock Coupling Trade Information

Delivery Time 1 Days

Product Description

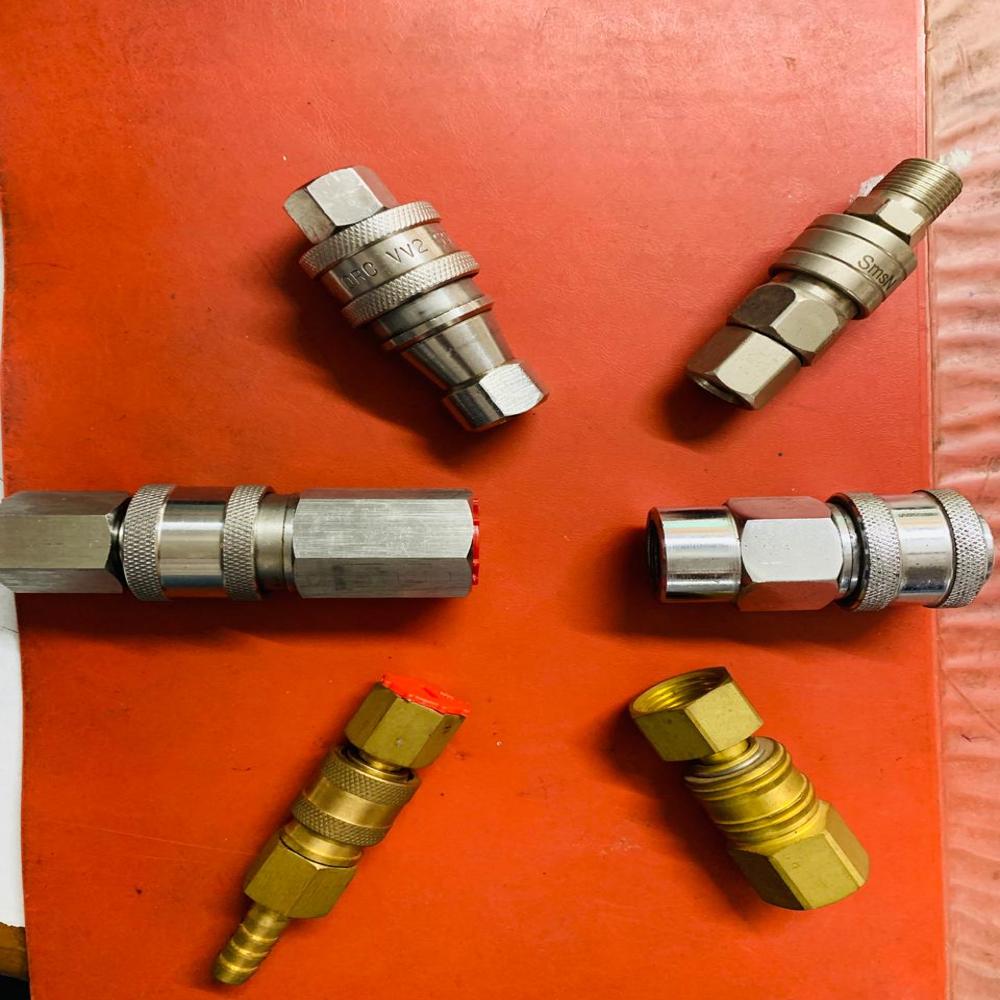

MS Quick Release Coupling

MS Quick Release Coupling is a robust and reliable industrial coupling designed for quick and easy connection and disconnection of hydraulic, pneumatic, water, air, and other fluid lines. Manufactured from high-quality Mild Steel (MS), it offers excellent strength, durability, and dependable performance in demanding industrial applications.

The quick-release mechanism allows operators to connect and disconnect pipelines or hoses without lengthy threading or complicated tools, helping reduce maintenance time and improve operational efficiency. Depending on the design, these couplings are available in single shut-off, double shut-off, and straight-through configurations.

Superior Performance in Challenging Conditions

Engineered from high-grade stainless steel, this camlock coupling offers excellent corrosion and wear resistance-even in aggressive chemicals or outdoor environments. Its versatility ensures long-term reliability for water, oil, and chemical transport needs.

Quick, Secure, and Tool-Free Connection

The innovative cam arm locking mechanism with safety pin enables fast and secure hand-tightened connections. No special tools are needed, streamlining hose changes and minimizing downtime during industrial operations.

Customizable and Industry-Compliant Design

Available in various sizes and featuring BSP or NPT threading, each coupling is crafted to meet industry standards A-A-59326 / EN 14420-7. Gasket material choices (NBR/EPDM/FKM) provide compatibility with a wide range of media and temperatures.

FAQ's of Industrial Camlock Coupling:

Q: How is the Industrial Camlock Coupling installed and operated?

A: The camlock coupling is connected by inserting the male adapter into the female coupler and locking the cam arms into place. The integrated safety pin enhances security. Installation is tool-free-simply hand-tighten for a leak-resistant seal.

Q: What types of fluids can the coupling transfer?

A: This coupling is ideal for the transfer of industrial fluids, including water, oils, and a variety of chemicals. Its corrosion-resistant stainless steel construction and versatile gasket options provide broad chemical compatibility.

Q: When should I select a specific gasket material (NBR, EPDM, or FKM)?

A: Gasket material should be chosen based on the operating temperature and the chemical nature of the fluid. NBR is suitable for oils, EPDM for water and steam, and FKM for high temperature or aggressive chemicals. Refer to your application requirements for optimal selection.

Q: Where can this camlock coupling be used?

A: Ideal for applications in industrial fluid transfer, chemical processing, oil and water transportation, and any environment where durable, corrosion-resistant connections are required. It is well-suited for both indoor facilities and outdoor fieldwork.

Q: What are the key benefits of using this camlock coupling?

A: Key benefits include rapid tool-free connection, high corrosion and wear resistance for long service life, full-bore design for optimal flow, and compliance with international standards for safety and reliability.

Q: What processes ensure the coupling's durability and finish?

A: Each unit is produced through investment casting for consistent quality and is finished with either a polished or shot blasted surface, enhancing both appearance and resistance to surface wear in repeated use.
