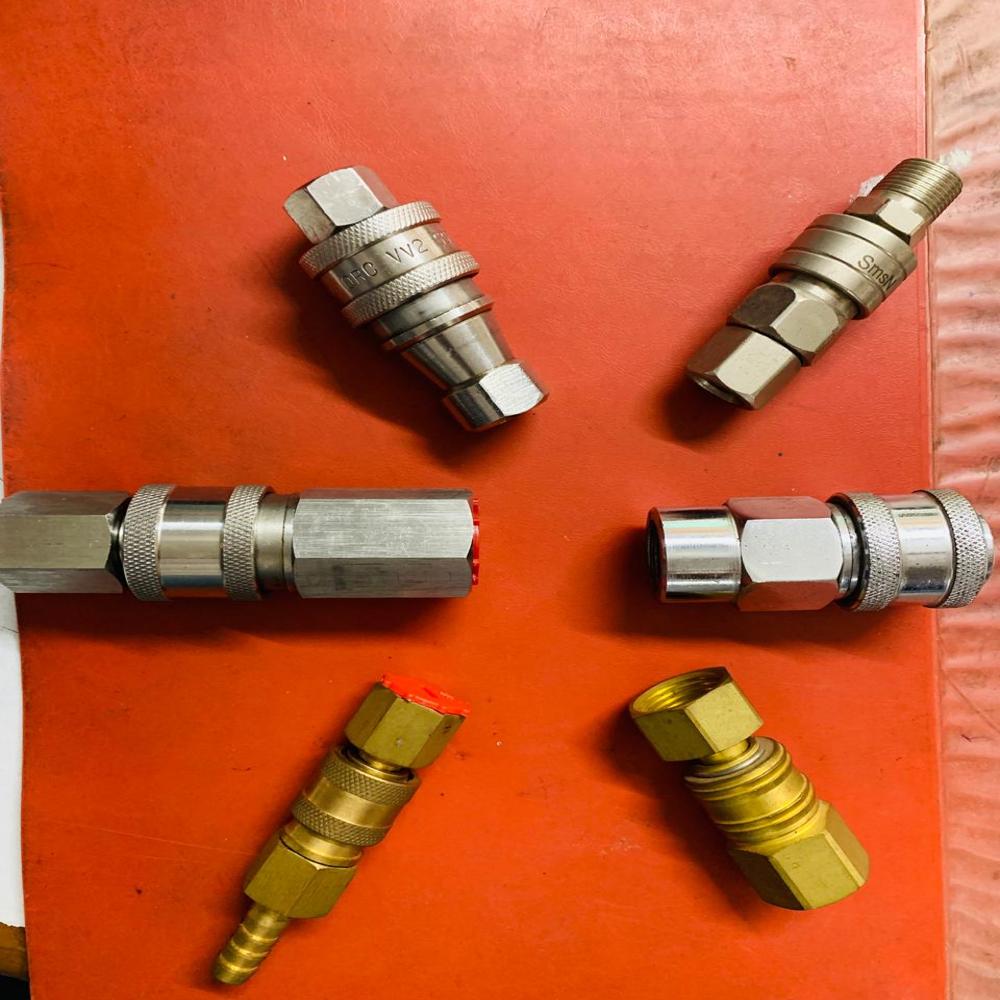

Hydraulic Quick Release Coupling

Name: Hydraulic Quick Release Coupling
Brand: SHIVANI TRADERS
Price: 510.0 INR
Availability: InStock

510.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Speed Not applicable (static connection)
Bore Standard and Customized sizes available
Thread BSP, NPT, Metric (custom available)
Head Code Hex
Connection Female/Male Thread, Hose Barb, Push-fit
Sealing Nitrile Rubber (NBR), Viton, PTFE
Torque Depends on thread size (typically up to 100 Nm for larger couplings)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Hydraulic Quick Release Coupling Price And Quantity

Minimum Order Quantity 5 Piece
Price 510.0 INR/Piece

Hydraulic Quick Release Coupling Product Specifications

Technique Precision Machined
Shape Hexagonal, Cylindrical
Outer Diameter 12 mm - 40 mm (varies by model)
Torque Depends on thread size (typically up to 100 Nm for larger couplings)
Material Carbon Steel, Stainless Steel, Brass
Sealing Nitrile Rubber (NBR), Viton, PTFE
Application Hydraulic Systems, Industrial Machinery, Construction Equipment, Agriculture, and Automotive Industry
Standard ISO 7241 A/B Series, DIN, Custom
Head Code Hex
Inner Diameter 6 mm - 25 mm (custom sizes on request)
Surface Treatment Nickel Plated / Zinc Plated / Polished Finish
Connection Female/Male Thread, Hose Barb, Push-fit
Structure One-Way Shutoff, Two-Way Shutoff
Bore Standard and Customized sizes available
Max. Speed Not applicable (static connection)
Thread BSP, NPT, Metric (custom available)

Temperature Range -25C to +120C (seal dependent)
Locking Mechanism Ball Lock, Sleeve Lock
Corrosion Resistance High, especially for stainless steel and nickel-plated models
Operating Pressure Up to 350 bar (5000 psi) depending on model
End Connection Type Threaded, Hose Barb, Flanged
Flow Rate Up to 250 L/min (depending on bore size)
Service Life Long, designed for multiple connect/disconnect cycles
Interchangeability Compatible with Parker, Faster, and other standard couplings
Protection Cap Available on request
Leakage Zero leakage design

Hydraulic Quick Release Coupling Trade Information

Delivery Time 1 Days

Product Description

Camlock Coupling

Camlock Coupling, also known as Cam and Groove Coupling, is a quick-connect coupling system designed for fast, secure, and convenient connection and disconnection of hoses, pipes, and fluid transfer lines. It eliminates the need for tools during connection, making it ideal for applications where hoses need to be connected and disconnected frequently.

Manufactured for reliable industrial performance, Camlock Couplings are available in different materials, sizes, and configurations to handle various fluids and operating conditions. They are widely used for transferring water, oil, chemicals, fuel, air, and other compatible fluids across industrial and commercial applications.

Versatile Applications for Demanding Environments

Engineered for hydraulic systems in industrial machinery, construction equipment, agriculture, and automotive industries, these couplings handle diverse operational settings. Their robust construction, variety of thread types (BSP, NPT, Metric), and compatibility with Parker, Faster, and standard couplings ensure seamless integration and adaptability, significantly reducing downtime and maintenance efforts.

Precision Machining and Superior Sealing Options

Each quick release coupling is precision machined for optimal fit and performance. Choices of nitrile rubber (NBR), Viton, or PTFE seals make these couplings suitable for a wide temperature range. The zero-leakage structure, along with one-way and two-way shutoff models, offers reliable containment of hydraulic fluids in critical applications.

Customizable Design to Suit Any System Requirement

With standard and custom bore and thread sizes, clients can specify inner diameters from 6 mm to 25 mm and outer diameters from 12 mm to 40 mm. Protection caps, various head codes, and surface treatments (nickel/zinc plating, polished finish) are available on request to further enhance service life and resist harsh operating conditions.

FAQ's of Hydraulic Quick Release Coupling:

Q: How do hydraulic quick release couplings improve efficiency in hydraulic systems?

A: These couplings enable fast, secure connection and disconnection of hydraulic lines, minimizing downtime during equipment changeover or maintenance. This leads to enhanced productivity and operational efficiency in demanding environments.

Q: What benefits do the zero leakage design and high corrosion resistance offer?

A: Zero leakage design prevents hydraulic fluid loss and environmental contamination, while high corrosion resistance-especially with stainless steel or nickel plated finishes-increases durability and reduces maintenance in challenging working conditions.

Q: When should I use a ball lock versus a sleeve lock coupling?

A: Ball lock couplings are typically used where frequent, quick connect/disconnect operations are needed, offering ease of use and security. Sleeve lock designs provide additional safety in high-vibration environments or when accidental disconnection must be prevented.

Q: Where can these couplings be utilized?

A: They are ideal for use in hydraulic systems found in industrial, construction, agricultural, and automotive sectors-basically any application that requires robust, reliable hydraulic connections.

Q: What is the process for selecting the appropriate coupling model?

A: Begin by identifying your system's operating pressure, flow rate, fluid type, temperature range, and desired connection method. Consider compatibility with Parker, Faster, or standard series, then select sealing material, size, threading, and surface treatment based on specific application needs.

Q: How does custom sizing and configuration benefit end users?

A: Customized bore and thread sizes ensure a precise fit, optimizing flow and pressure for unique systems. This minimizes risk of leaks or component failure and improves overall performance longevity.
