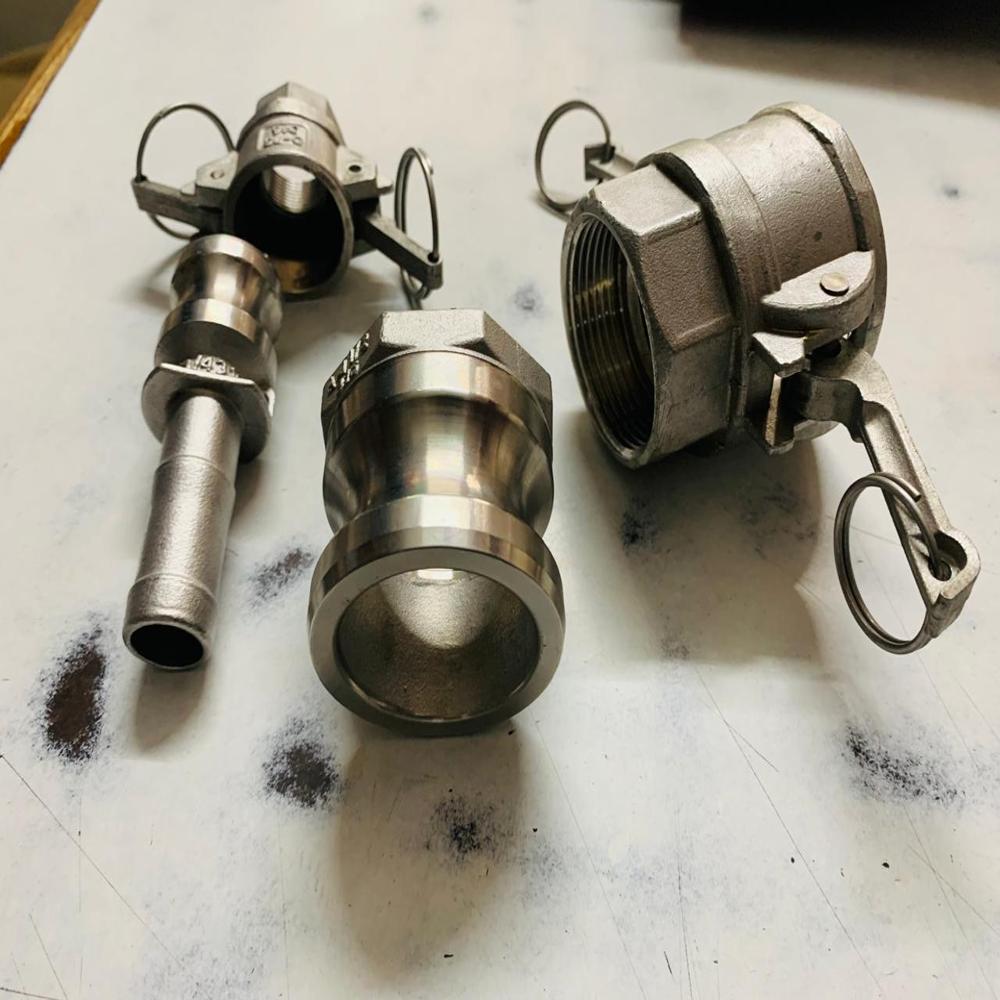

Camlock Fittings

Name: Camlock Fittings
Brand: SHIVANI TRADERS
Price: 400.0 INR
Availability: InStock

400.0 INR/Piece

Get a Price/Quote

Product Details:

Head Code Hexagonal
Max. Speed Not Applicable (static connection)
Bore Full bore
Torque Hand-operated, not torque dependent
Thread BSP/NPT Female or Male
Connection Camlock quick connect/disconnect
Sealing Gasket Seal
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Camlock Fittings Price And Quantity

Minimum Order Quantity 2 Piece
Price 400.0 INR/Piece

Camlock Fittings Product Specifications

Thread BSP/NPT Female or Male
Outer Diameter Varies with fitting size
Technique Precision casting and machining
Connection Camlock quick connect/disconnect
Application Industrial pipe connections, chemical, water, oil transfer
Structure Coupler and adaptor body with cam arms
Sealing Gasket Seal
Surface Treatment Polished
Torque Hand-operated, not torque dependent
Shape Cylindrical with cam arms
Material Stainless Steel (SS316/SS304)
Max. Speed Not Applicable (static connection)
Inner Diameter 1/2 to 8 (varies by model)
Standard DIN, ASTM, ISO
Bore Full bore
Head Code Hexagonal

Temperature Range -20C to 200C depending on gasket material
Pressure Rating Typically up to 250 psi (varies with size and design)
End Connection Options Hose shank, Male/Female threaded, Flanged
Locking Mechanism Quick release spring lever
Gasket Material Options EPDM, Nitrile, Viton, PTFE
Compatible Media Liquids, powders, and granules
Weight Varies depending on size, typically 100g - 3kg
Corrosion Resistance Excellent due to stainless steel build
Size Range DN15 - DN200 (1/2" - 8")
Cam Arm Material Stainless Steel

Camlock Fittings Trade Information

Delivery Time 1 Days

Product Description

MS Quick Release Coupling

MS Quick Release Coupling is a robust and reliable industrial coupling designed for quick and easy connection and disconnection of hydraulic, pneumatic, water, air, and other fluid lines. Manufactured from high-quality Mild Steel (MS), it offers excellent strength, durability, and dependable performance in demanding industrial applications.

The quick-release mechanism allows operators to connect and disconnect pipelines or hoses without lengthy threading or complicated tools, helping reduce maintenance time and improve operational efficiency. Depending on the design, these couplings are available in single shut-off, double shut-off, and straight-through configurations.

Superior Stainless Steel Construction

Built with high-grade SS316 or SS304, Camlock fittings offer exceptional corrosion resistance, making them reliable for harsh industrial environments. The polished surface adds both durability and ease of cleaning, which is essential in food, chemical, and water industries.

Versatile Application and Compatibility

Camlock fittings are compatible with a wide variety of media, including liquids, powders, and granules. Their full bore design ensures unobstructed flow, and they can be connected to pipes using hose shank, threaded, or flanged ends, suiting numerous operational requirements.

Simple and Fast Quick-Connect Mechanism

Featuring a spring-loaded lever system, Camlock couplers can be engaged or released by hand with minimal effort. No tools or torque specifications are needed, enabling rapid installation or changeover, minimizing downtime in industrial processes.

FAQ's of Camlock Fittings:

Q: How do I install and operate Camlock fittings?

A: Camlock fittings are installed by aligning the coupler and adaptor, inserting the cam arms into the adaptor grooves, and lowering the cam arms to lock the connection. The quick-release spring lever allows for fast, tool-free operation and secure sealing without the need for torque.

Q: What advantages do stainless steel Camlock fittings provide for industrial applications?

A: Stainless steel Camlock fittings offer outstanding corrosion resistance, durability, and hygiene. They are ideal for demanding environments such as chemical processing, water treatment, and oil transfer, where reliability and cleanliness are crucial.

Q: When should I choose different gasket materials for my Camlock fittings?

A: Select the gasket material based on the temperature range and chemical compatibility required. EPDM suits water and mild chemicals, Nitrile is resistant to oils, Viton handles higher temperatures and aggressive chemicals, while PTFE offers broad chemical resistance.

Q: Where are Camlock fittings commonly utilized?

A: These fittings are widely used in industrial settings involving fluid transfer, such as chemical plants, water treatment facilities, food and beverage processing, and petroleum distribution, owing to their versatility and secure connections.

Q: What is the typical pressure and temperature rating for Camlock fittings?

A: Camlock fittings can handle pressures up to 250 psi, though the exact rating depends on size and design. The temperature range extends from -20C to 200C, determined primarily by the gasket material used.

Q: What end connections and size options are available?

A: Camlock fittings are offered in hose shank, male/female threaded (BSP/NPT), and flanged variants. Sizes range from DN15 to DN200 (1/2" to 8"), accommodating various piping systems and flow requirements.

Q: How do Camlock fittings benefit my process operations compared to traditional connections?

A: The quick-connect/disconnect feature greatly reduces installation and maintenance time, minimizes spillage risk during changes, and improves operational flexibility, especially when frequent connection or disconnection is required.
