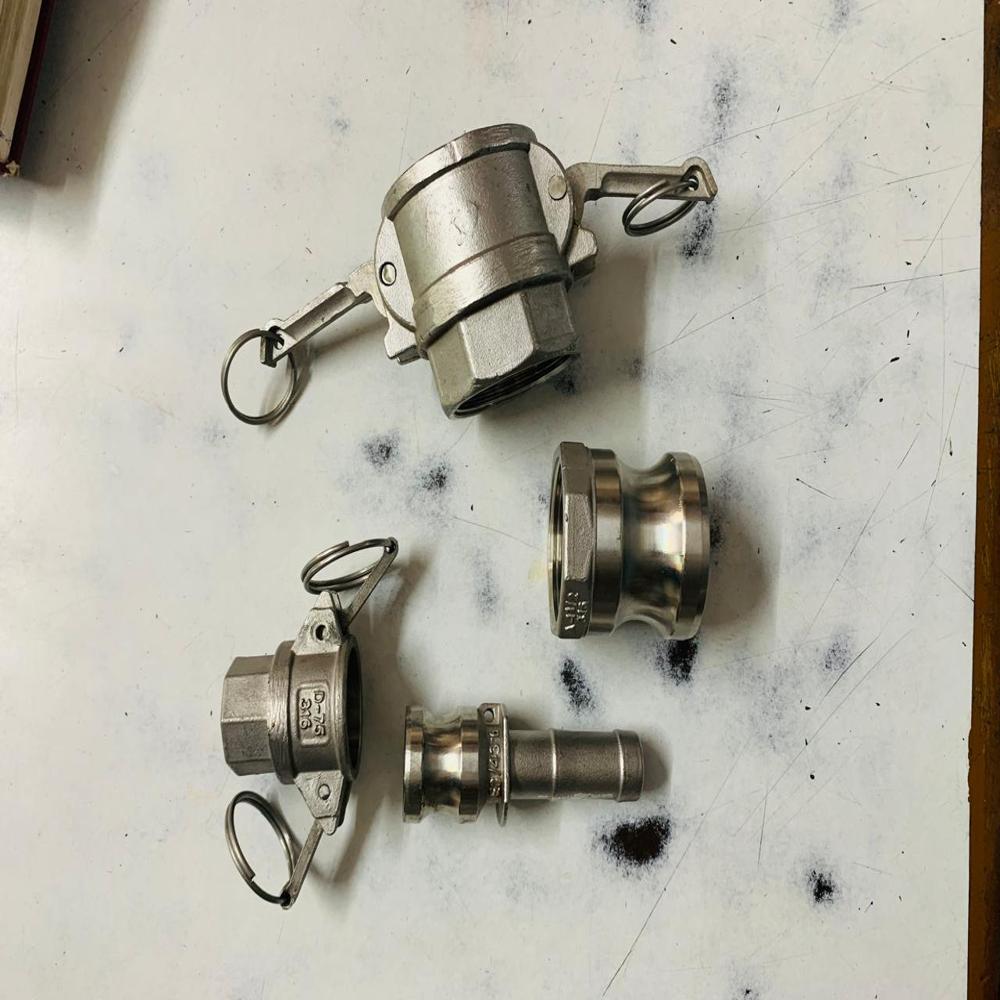

SS Camlock Coupling

Name: SS Camlock Coupling
Brand: SHIVANI TRADERS
Price: 395.0 INR
Availability: InStock

395.0 INR/Unit

Get a Price/Quote

Product Details:

Bore Full Bore
Sealing Gasket (Buna-N, EPDM, PTFE, Viton optional)
Connection Male/Female Threaded, Hose Shank
Max. Speed Not applicable for static coupling
Thread BSP/NPT
Torque Hand-tight, not torque-rated
Head Code Hex/Flat
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

SS Camlock Coupling Price And Quantity

Minimum Order Quantity 2 Unit
Price 395.0 INR/Unit

SS Camlock Coupling Product Specifications

Application Fluid transfer, chemical processing, food and beverage, petroleum, agriculture, and marine industries
Outer Diameter Varies as per nominal size
Structure Coupling with two cam arms
Inner Diameter Customizable (commonly from 1/2 to 6)
Material Stainless Steel (SS316/SS304)
Head Code Hex/Flat
Thread BSP/NPT
Torque Hand-tight, not torque-rated
Shape Round/Hexagonal
Technique Investment casting/Precision casting
Max. Speed Not applicable for static coupling
Connection Male/Female Threaded, Hose Shank
Surface Treatment Polished/Shot Blasted
Sealing Gasket (Buna-N, EPDM, PTFE, Viton optional)
Bore Full Bore
Standard A-A-59326 (MIL-C-27487), DIN 2828

Media Compatibility Suitable for water, oil, gas, chemicals, food products
Lock Mechanism Cam lever with locking pin
Corrosion Resistance Excellent - suitable for harsh and corrosive environments
Marking Size & Material Grade marked on coupling
Working Pressure Up to 250 psi (varies with size and type)
Coupling Type Camlock/Quick Release Coupling
Weight Depends on size (e.g., ~0.2-2.5 kg per piece)
Maintenance Low, easy to disassemble and clean
End Connections Threaded, Hose Shank, Flanged, Welded
Temperature Range -20C to +200C (depending on gasket used)

SS Camlock Coupling Trade Information

Delivery Time 1 Days

Product Description

MS Quick Release Coupling

MS Quick Release Coupling is a robust and reliable industrial coupling designed for quick and easy connection and disconnection of hydraulic, pneumatic, water, air, and other fluid lines. Manufactured from high-quality Mild Steel (MS), it offers excellent strength, durability, and dependable performance in demanding industrial applications.

The quick-release mechanism allows operators to connect and disconnect pipelines or hoses without lengthy threading or complicated tools, helping reduce maintenance time and improve operational efficiency. Depending on the design, these couplings are available in single shut-off, double shut-off, and straight-through configurations.

Versatile Applications in Multiple Industries

SS Camlock Couplings are ideal for sectors such as petroleum, chemical processing, food and beverage, agriculture, and marine operations. Their compatibility with diverse media and full bore design enables efficient fluid transfer, supporting both demanding industrial needs and hygiene-sensitive processes. Their corrosion resistance makes them reliable in harsh and corrosive settings.

Engineered for Performance and Safety

Featuring a cam lever locking mechanism with pin, these couplings ensure secure, leak-free connections without tools. The use of precision casting and quality surface treatments (polished or shot blasted) enhance durability and hygiene. Customizable sizes, options for different end connections, and clear markings for size and material grade make them easy to identify and install.

FAQ's of SS Camlock Coupling:

Q: How do I select the right gasket for an SS Camlock Coupling based on my application?

A: The gasket choice depends on your operating temperature and media compatibility. Buna-N is suitable for oils, water, and mild chemicals; EPDM withstands hot water and steam; PTFE offers excellent chemical resistance; while Viton is ideal for aggressive chemicals and high temperatures. Always verify compatibility with your specific media before use.

Q: What is the process for assembling and locking the SS Camlock Coupling?

A: To assemble, insert the male adapter into the female coupler, then close both cam arms until locked. The integrated locking pin ensures the connection remains secure during operation. Disassembly is just as simple-release the pin and open the cam arms, enabling quick changeover and cleaning.

Q: Where can SS Camlock Couplings be installed for best performance?

A: These couplings are best installed in fluid transfer lines where quick connection or disconnection is required, such as in chemical plants, loading/unloading stations, agricultural hoses, or food and beverage processing lines. Their corrosion resistance makes them especially suitable for outdoor or marine environments.

Q: What maintenance is recommended for stainless steel Camlock Couplings?

A: SS Camlock Couplings are low-maintenance. Regular inspection for wear, gasket integrity, and cleanliness keeps them in optimal condition. Because they can be easily disassembled, cleaning and visual checks can be done frequently to ensure hygiene and performance.

Q: What benefits do SS Camlock Couplings provide compared to other coupling types?

A: These couplings offer quick and tool-free assembly/disassembly, secure locking, compatibility with various fluids, and long-term resistance to corrosion, making them cost-effective for frequent use and harsh environments. Stainless steel construction ensures suitability for food-grade, pharmaceutical, or chemical processes without contamination risk.

Q: When is it necessary to use a full bore coupling?

A: A full bore coupling is preferred when maximum flow rate and minimal pressure drop are required, such as in high-volume fluid transfer or when handling viscous media. This feature is particularly beneficial in industrial processing and bulk material transfer applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Camlock Coupling' category

Quick Release Coupling Price : 505.0 INR/Unit Minimum Order Quantity : 5 Outer Diameter : 8 mm 30 mm (as per model) Application : Hydraulic and Pneumatic Systems, Industrial Equipment, Fluid Transfer Inner Diameter : 6 mm 25 mm (as per model) Structure : Other, Socket and Plug (Male/Female) Material : Other, Stainless Steel, Brass Head Code : Other, Hex Thread : BSP, NPT, or Metric available Torque : Depend on application, generally handtight Shape : Other, Hexagonal Body Technique : Other, Machined and Precision Cast Max. Speed : Not applicable (static fitting) Connection : Other, Threaded or Barbed Surface Treatment : Other, Nickel Plated / Brass Finish Sealing : NBR/Viton Oring Seal Bore : Standard, as per size specification Standard : ISO 7241, DIN or OEM

Send Inquiry

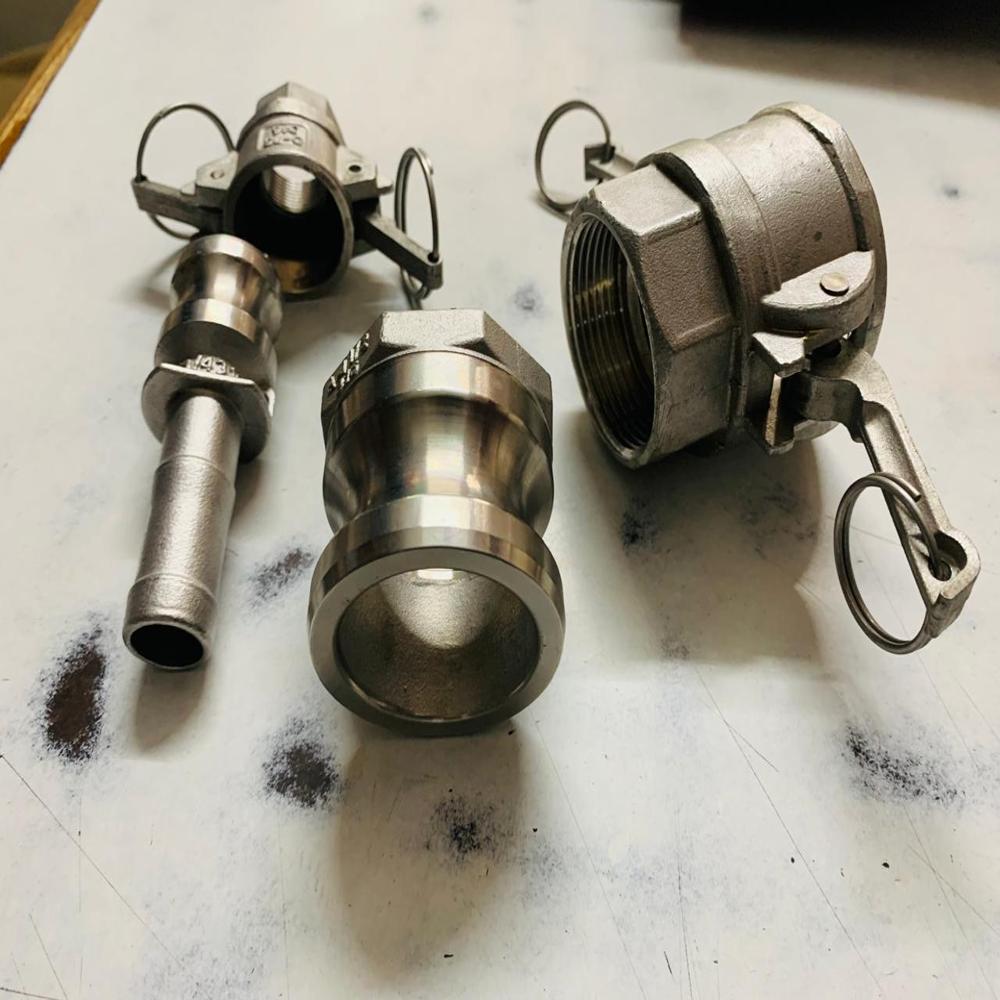

Industrial Camlock Coupling Price : 400.0 INR/Unit Minimum Order Quantity : 2 Outer Diameter : Customized as per specification Application : Industrial fluid transfer, chemical processing, water and oil transport Inner Diameter : 1/2 inch (DN15) Structure : Other, Lever Locking Arm with groove coupling Material : Other, Stainless Steel (SS316/SS304 as marked on part) Head Code : Hexagon Thread : BSP / NPT (as per requirement) Torque : Handtight no special tools required Shape : Other, Camlock Coupling (Male and Female set) Technique : Other, Investment Casting Max. Speed : Not applicable for static pipe coupling Connection : Other, Quick Coupling Connection Surface Treatment : Other, Polished / Shot blasted Sealing : NBR / EPDM / FKM Gasket available Bore : Full Bore Standard : AA59326 / EN 144207

Send Inquiry

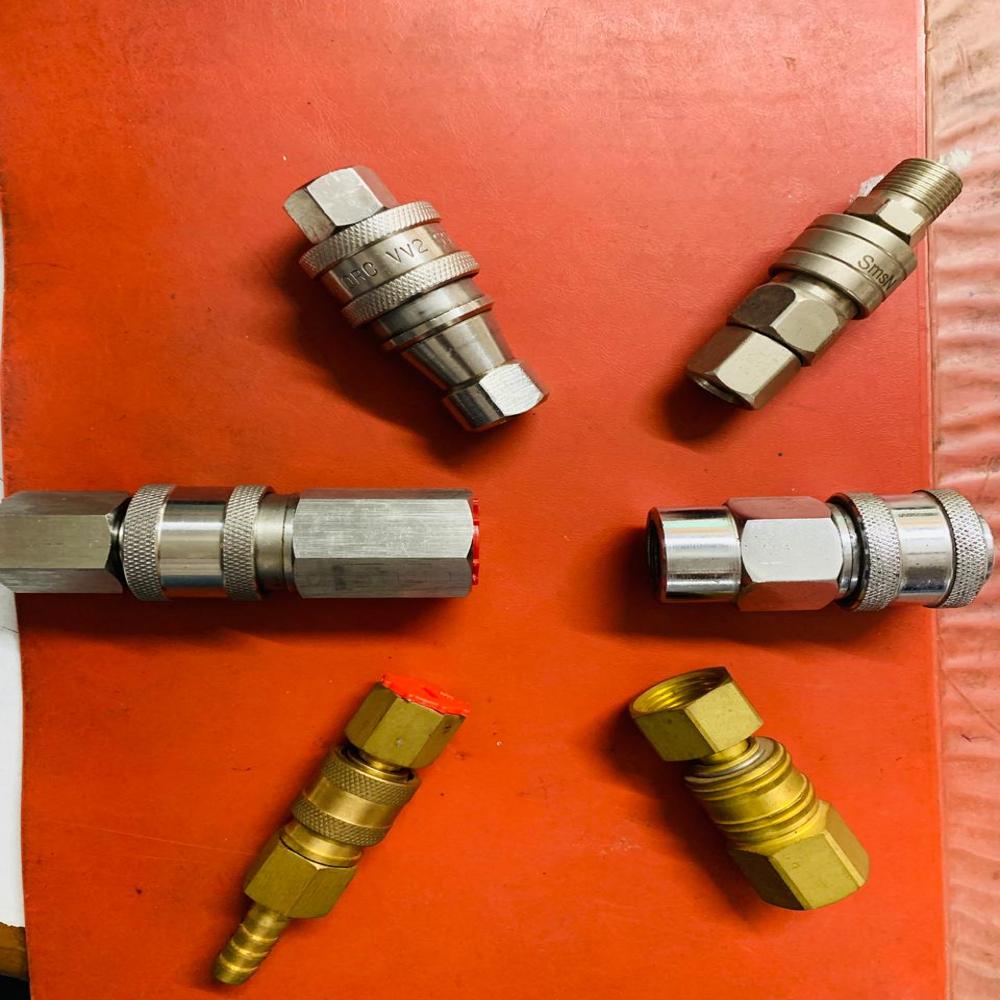

Hydraulic Quick Release Coupling Price : 510.0 INR/Piece Minimum Order Quantity : 5 Outer Diameter : 12 mm 40 mm (varies by model) Application : Hydraulic Systems, Industrial Machinery, Construction Equipment, Agriculture, and Automotive Industry Inner Diameter : 6 mm 25 mm (custom sizes on request) Structure : Other, OneWay Shutoff, TwoWay Shutoff Material : Other, Carbon Steel, Stainless Steel, Brass Head Code : Other, Hex Thread : BSP, NPT, Metric (custom available) Torque : Depends on thread size (typically up to 100 Nm for larger couplings) Shape : Other, Hexagonal, Cylindrical Technique : Other, Precision Machined Max. Speed : Not applicable (static connection) Connection : Other, Female/Male Thread, Hose Barb, Pushfit Surface Treatment : Other, Nickel Plated / Zinc Plated / Polished Finish Sealing : Nitrile Rubber (NBR), Viton, PTFE Bore : Standard and Customized sizes available Standard : ISO 7241 A/B Series, DIN, Custom
